Bind a service instance to your app

In this document we want to take a look on how you can bind a Service Instance to your application. With those services you can enrich your cloud experience with a persistance layer, a message queue or other usefull tools. The Cloud Foundry makes this process especially easy with its service brokers. Here you will learn how to use them.

This is a first steps overview on the topic of services within the Cloud Foundry. You can find more detailed information about managing services in the official Cloud Foundry documentation.

Do you want to try out STACKIT Cloud Foundry for the first time and don’t have a cloud-ready application prepared? In that case; use one of the sample applications provided by the Cloud Foundry open source community for this purpose: Cloud Foundry Sample Applications.

Via CLI

In this tab you will learn how to use the Cloud Foundry CLI to:

• Bind a service instance to an app
• Unbind a service instance

Bind a service instance to an app via CLI

Binding your dataservice to your application means, that you automatically inject the connection credentials you need for accessing your dataservice into the environment variables of your applications space. If an automated process is updating your dataservice in a way, that the connection credentials change, the Cloud Foundrys automations will then directly make sure, that the injected credentials are also updated. This means after creating and binding a service instance, all you have to do is read out the connection credentials from the environment variables and you are ready to use your dataservice without any further worries.

You can easily bind a dataservice instance to your application via the following $ cf bind-service command. After the binding is complete, you have to restage your application in order to let the application read out the newly injected environment variables.

cf bind-service APP_NAME SERVICE_INSTANCE_NAME [-c PARAMETERS_AS_JSON] [--binding-name BINDING_NAME]
cf restage APP_NAME

It is strongly recommended to use the --binding-name argument to define a specific binding-name. This name can then be used to identify the connection credentials of your dataservice within your environment variables.

Using the service instance name or especially the service name of your dataservice as identifier in the list of injected connection credentials can lead to problems, especially if you have multiple dataservice bindings!

After the binding is successfull you can see a new object in the environment variables of your space called VCAP_SERVICES. In there you can find the list of services bound to your application like in the example below.

{
  "VCAP_SERVICES": {
    "service-name": [
      {
        "name": "postgres-database",
        "binding_name": "postgres-database",
        "credentials": {
          ...
        }
      }
    ]
  }
}

You can easily read out the environment variable for your bound dataservice via the set binding name.

You can also bind an existing service instance to your application via the manifest file. Just extend the manifest file with the services block. This would look like:

manifest.yml

---
applications:
- name: APP_NAME
  services:
  - SERVICE_INSTANCE_NAME

Pushing this manifest file will then automatically bind the service instance to your application. For more details, see “How to use manifest files”.

Unbind a service instance via CLI

You can also unbind your service instances again if you no longer need them. You can do an unbind with the following command:

cf unbind-service APP_NAME SERVICE_INSTANCE_NAME

Via Stratos (UI)

In this tab you will learn how to use the Stratos UI to:

• Bind a service instance to an app
• Unbind a service instance

Bind a service instance to an app via Stratos

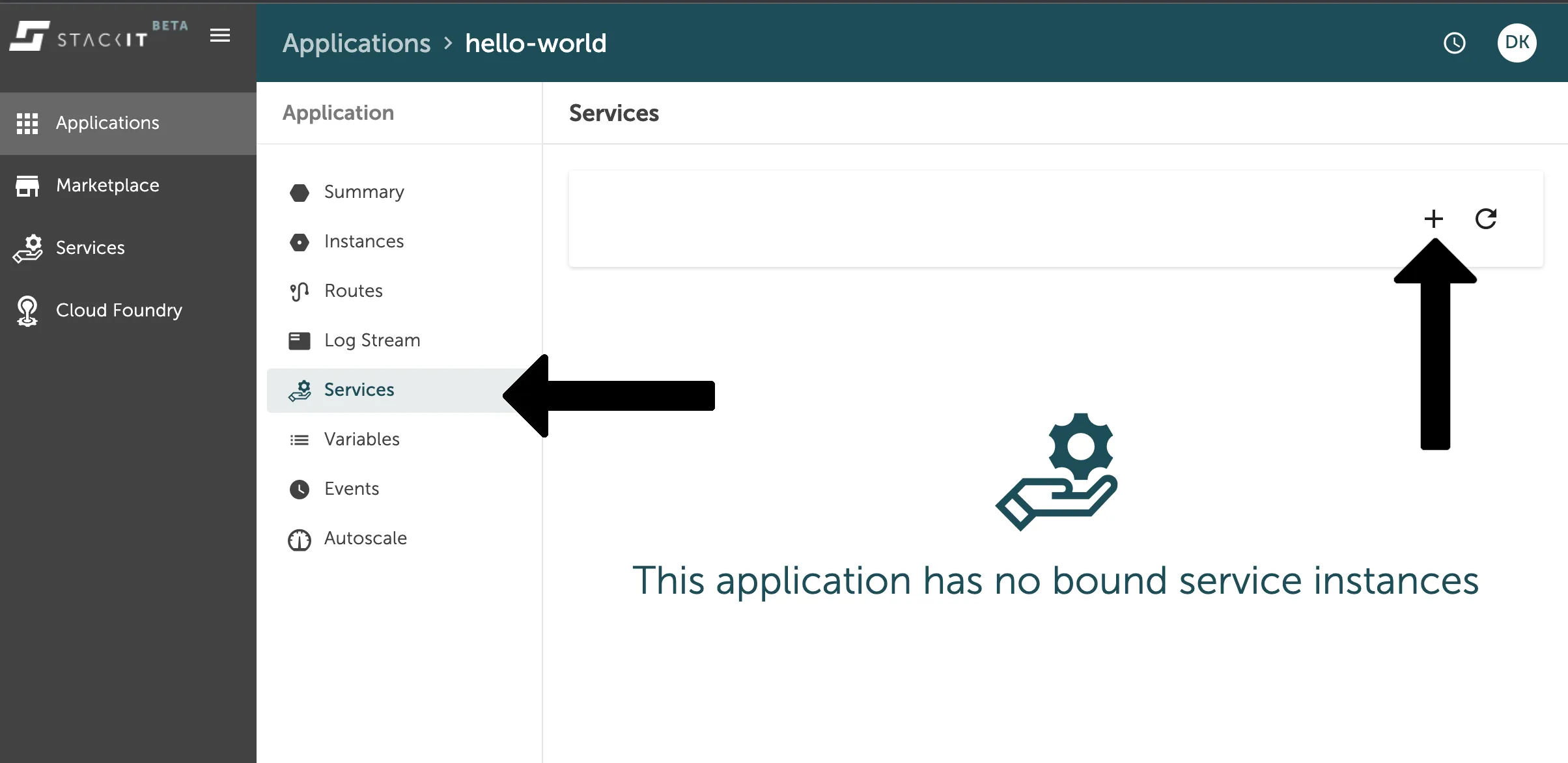

If you want to bind a service instance to your application, you can do so in the service overview of your application space in the left side navigation of the console UI. Navigate to “Applications”, then to “Services” and there you will find the ”+“-Button on the top to add a new service instance binding.

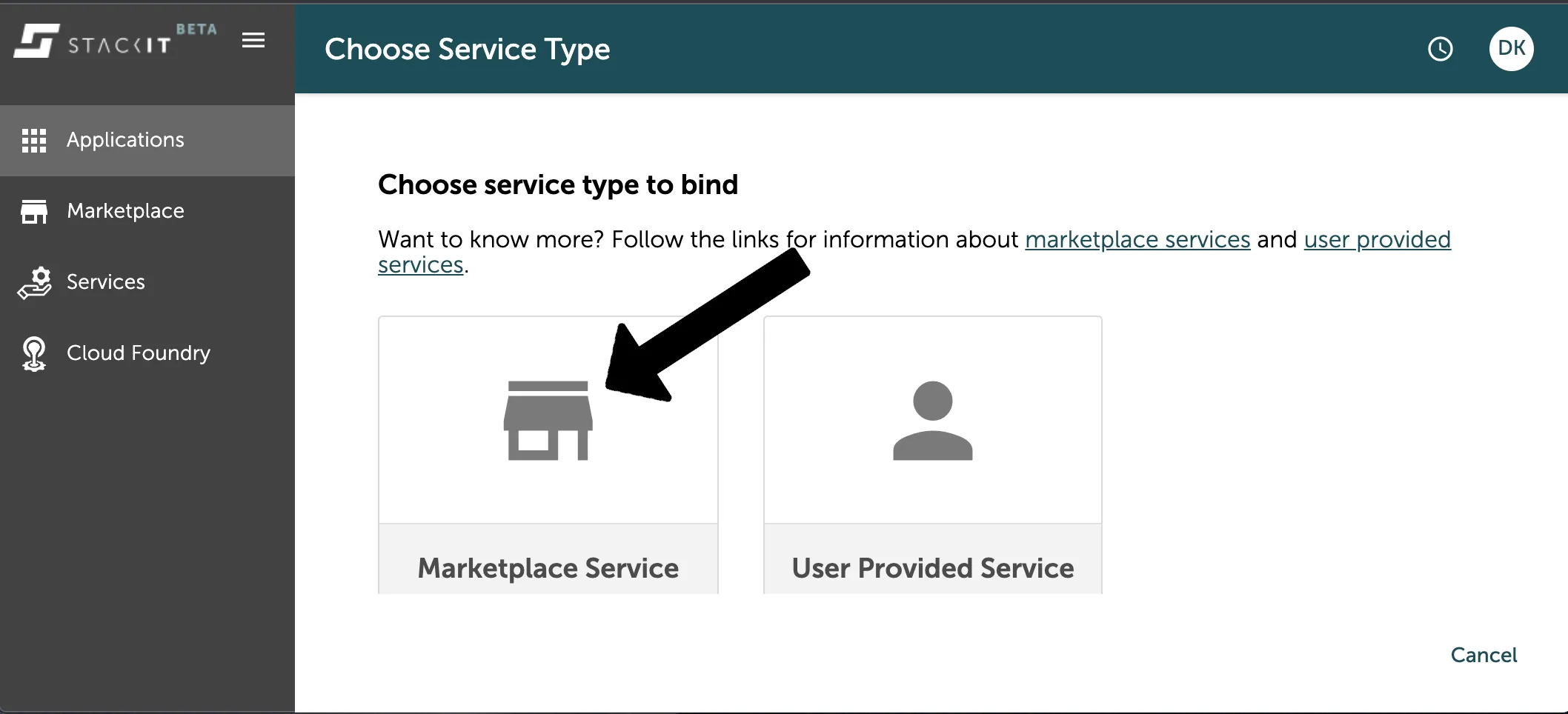

Afterwards you will be asked, if you want to bind an instance of a marketplace service or a user provided service. Marketplace services are all dataservices you can find in the platforms marketplace, as seen in the first chapter. User Provided Services are services you create and deploy on the Cloud Foundry on your own, like for example a routing service.

Since we want to bind a dataservice in this example, you have to select the marketplace service by just clicking on the panel.

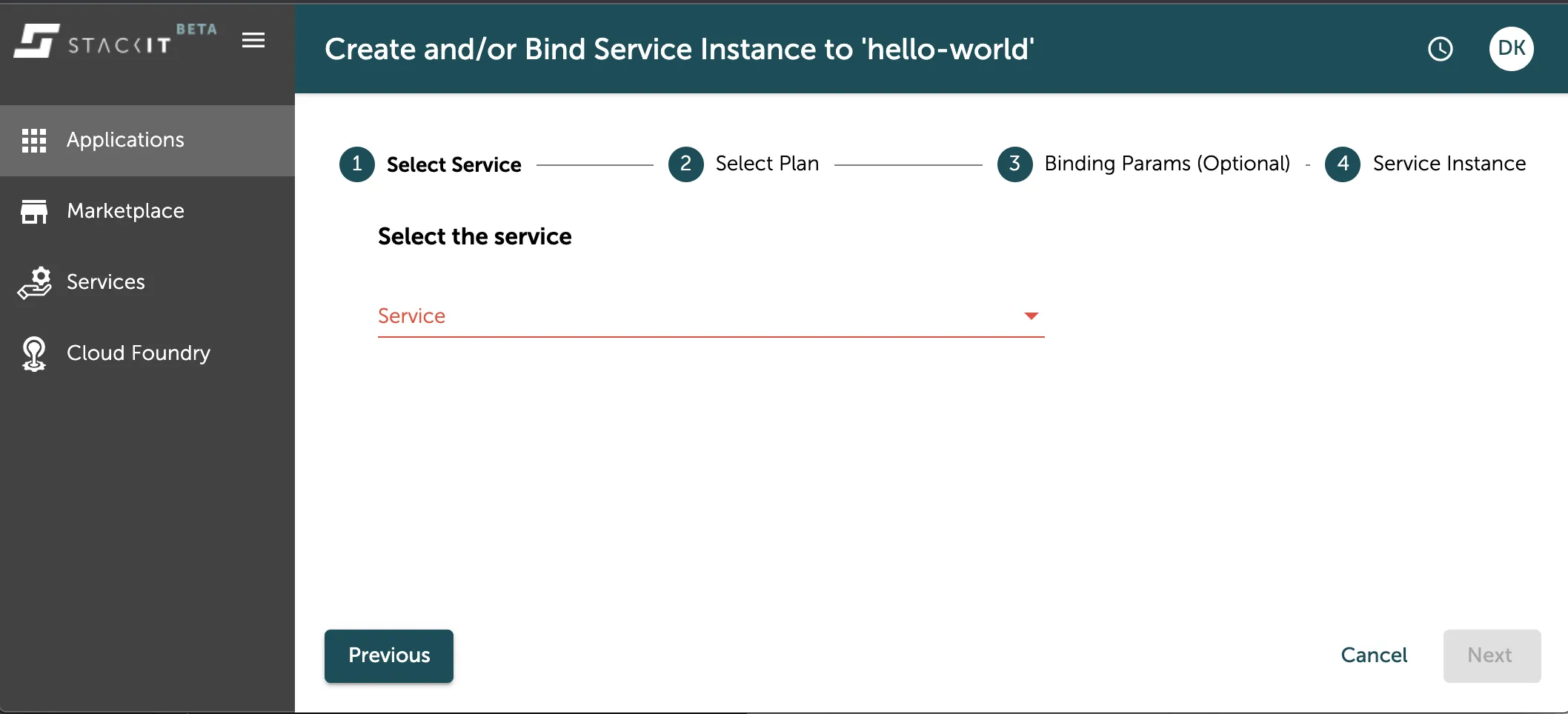

As a next step you have to select the service type you want to bind. Here you have to select the same service type as the one you created.

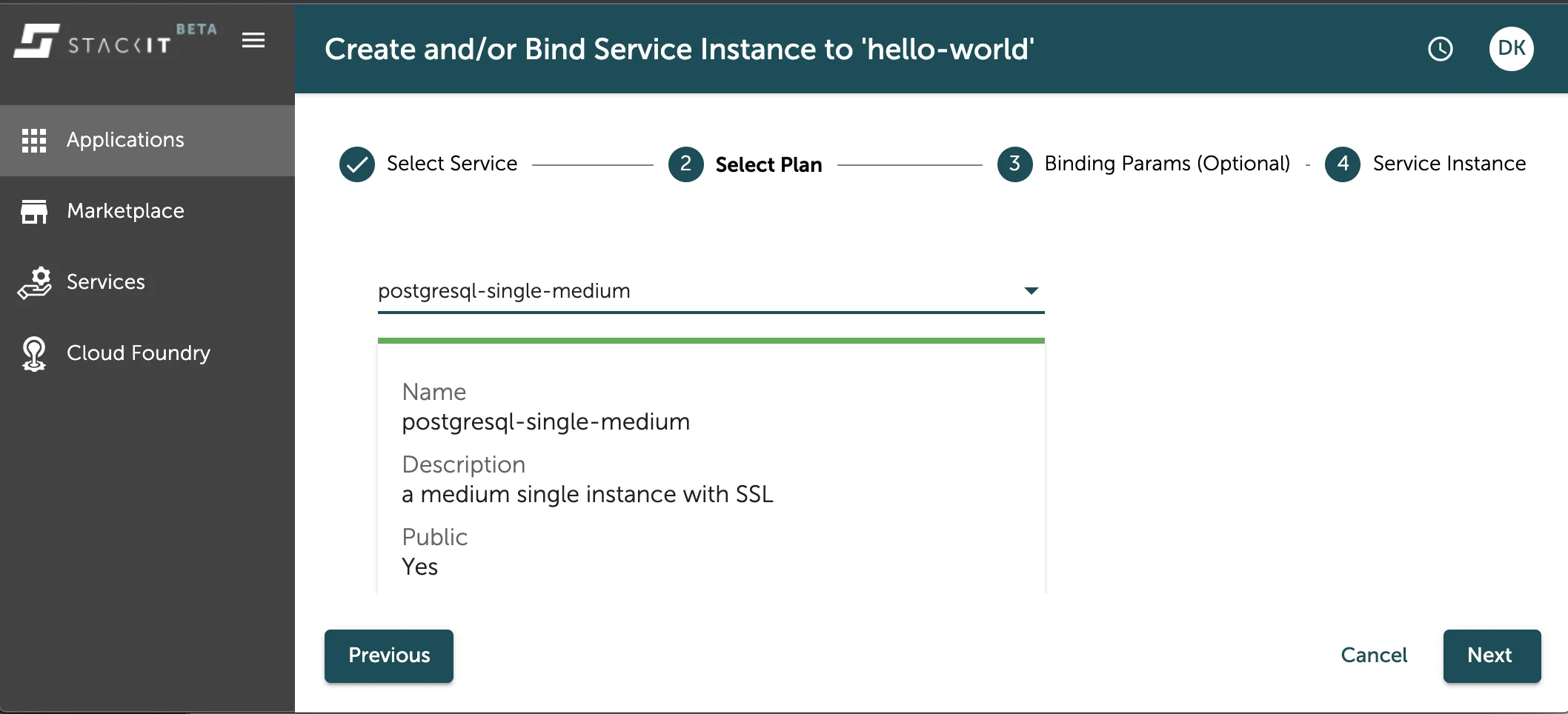

You have to do the same for the next step, selecting exactly the service plan you used for the creation of your service instance. You can find the information which service plan your service instances uses in the general service overview of the console ui.

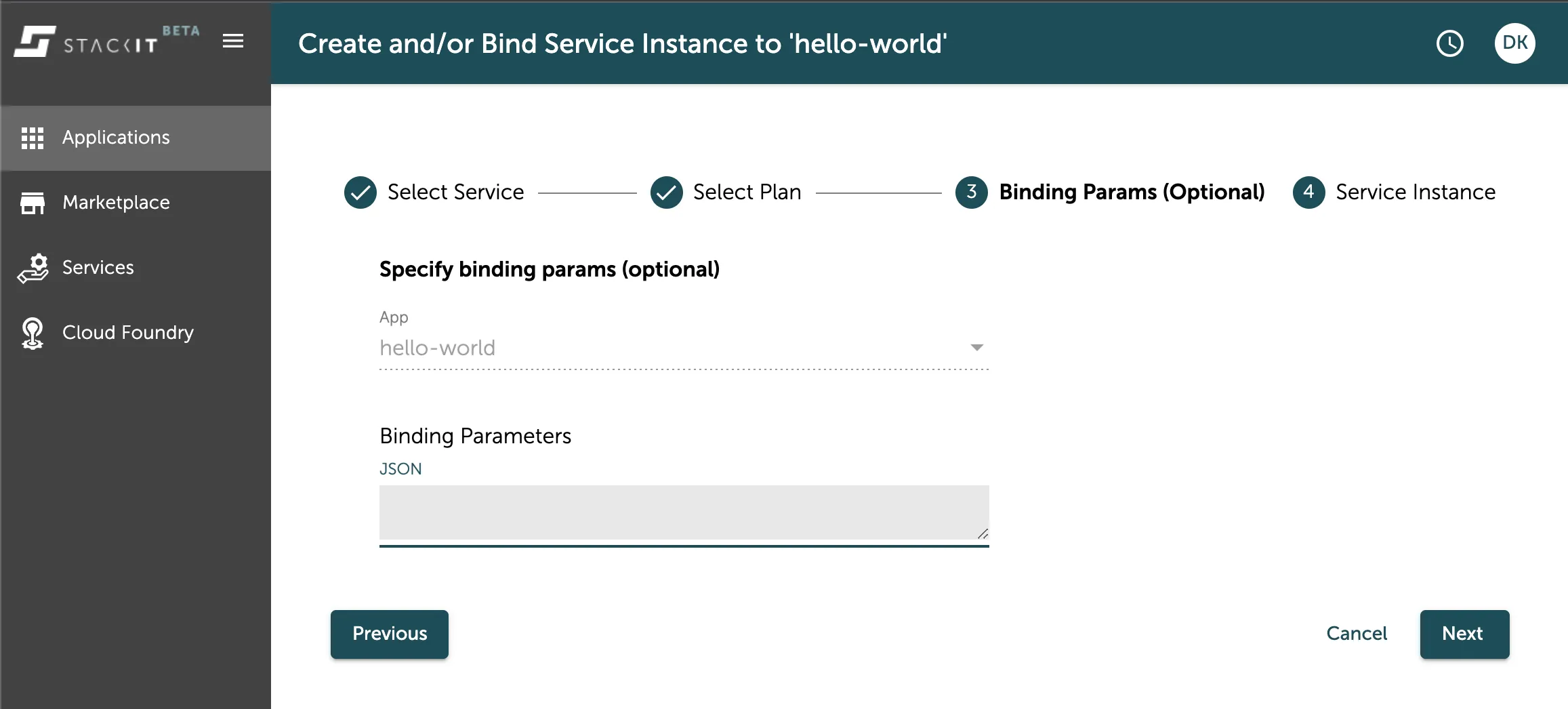

In the following step you can add additional binding parameters to your service instance binding. You should also see the app name you want to bind your service instance to in the App-field above.

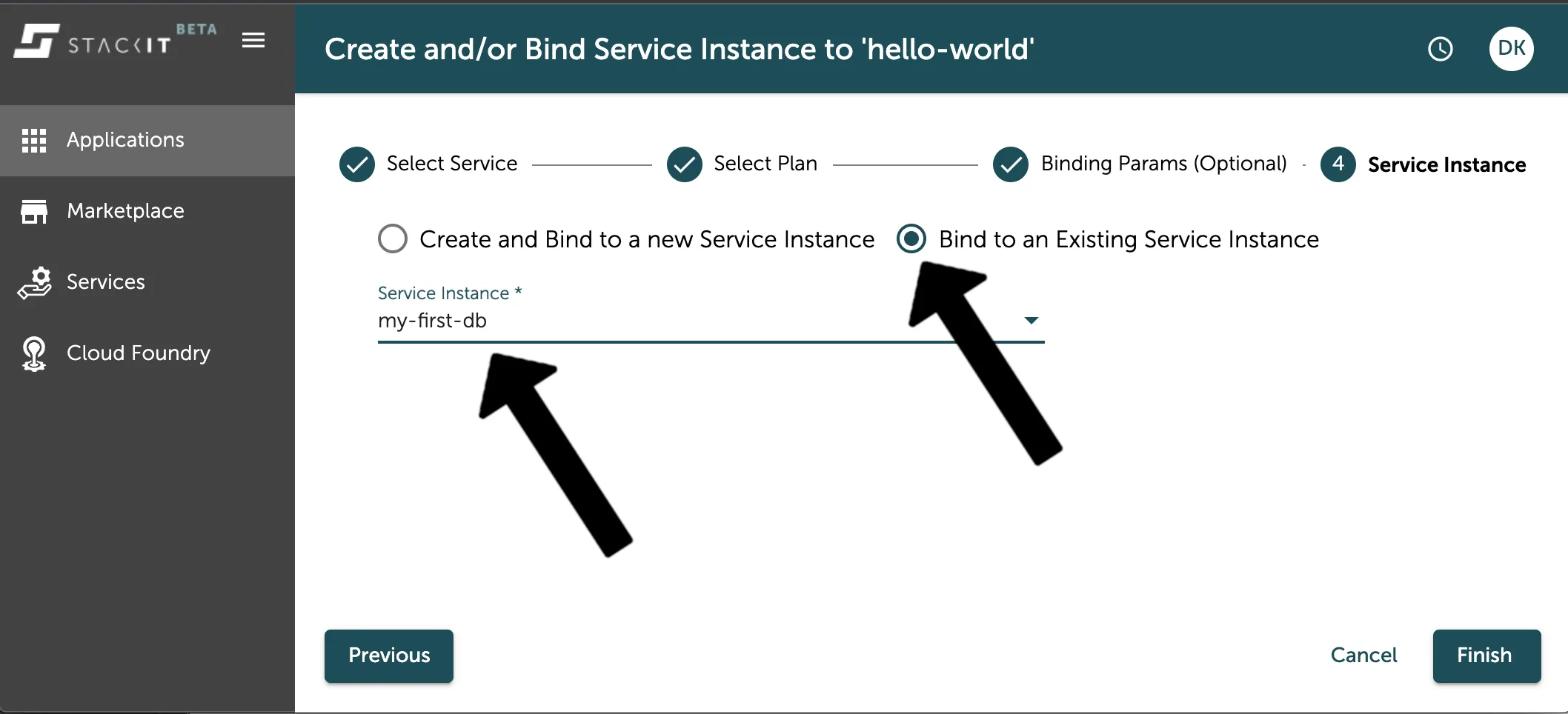

In the last step you can finally select the service instance you want to bind to.

If you do not see the “Bind to an Existing Service Instance” option in this step, you most likely selected the wrong service plan or service type. This option will only appear, if you already have a service instance for the selected service type and service plan.

This functionality of the service creation in this process currently does not work.

Our dataservice instance creation is asynchronous and the binding process of the Console UI here is expecting a synchronous response. Selecting the option “Create and Bind to a new Service Instance” here will lead to an error message, that the binding did not work. Your service instance will still be created, but you have to follow the binding process in this chapter again to select the option “Bind to an Existing Service Instance”.

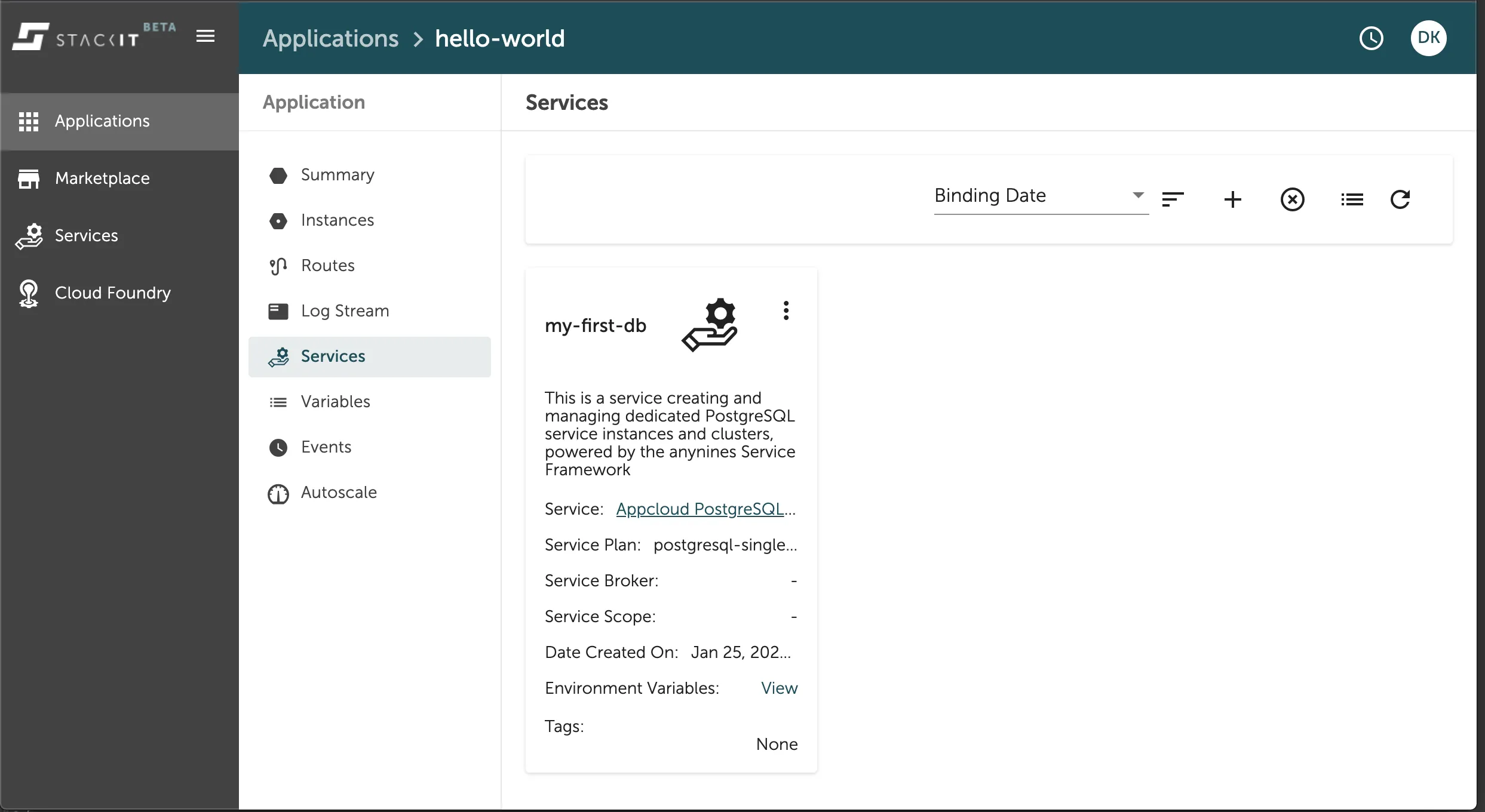

In the dropdown menu, you can select one of the service instances available for binding with the parameters you set in the process before. Execute the binding by clicking the “Finish”-button. Now your service is bound to your application and you can see it in the services overview of your application space in the Console UI as seen in the image below.

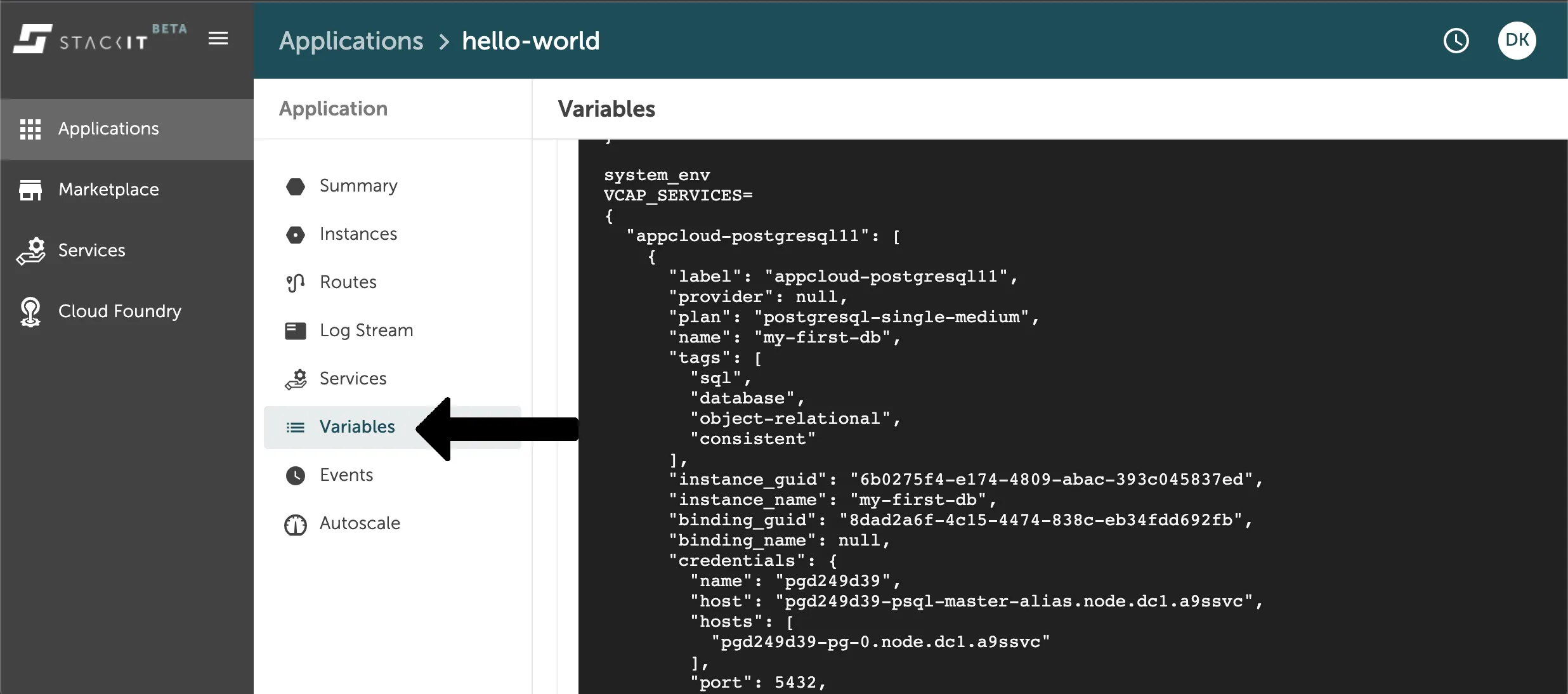

Additionally the connection credentials to your dataservice instance were injected into your applications environment variables via the VCAP_SERVICES object as seen in the image below.

Make sure to restage your application after binding a new dataservice instance to it, in order for the application to read out the new environment variables.

Unbind a service instance via Stratos

You can easily unbind your dataservice instance in the Service Overview of the Console UI. Filter for the space your instance is created in and then select the context menu (three dots) in the panel of the service instance you want to unbind. As seen in the image below.
